Stainless Steel 316 Camlock Fitting Type C Female Coupling x Hose Barb

Type C Camlock: Female Coupling x Hose Barb. Stainless steel. Corrosion-resistant, no-tool fit. Ideal for food, pharma & chemical use. 20–150mm.

Price range: $12.21 through $254.77 Inc. GST

- +
SKU: CLSSC Category: Tag: Brand:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Stainless Steel Camlock – Type C – Female Camlock x Male Hose Barb

The benefit of a stainless steel camlock is that stainless steel is durable, robust and has exceptional temperature resistance. The cleanliness of the inner wall of the couplings helps avoid impurities, condensation and bacteria growing. It is commonly used for the transfer of acid, alkali and corrosive substances and also one of the 1st choices in food, beverage and pharmaceutical processing.

Camlock fittings are used to connect hose fittings and/or pipe fittings together in a numerous number of industries – this enables liquids to be transferred from one place to another. No tools are required to connect camlock fittings which makes them super easy to use, time saving and cost efficient. Camlock fittings are an extremely versatile and durable product and are well suited to situations where frequent changes occur.

  • Female Camlock x Male Hose Barb.
  • Used with corresponding adaptors: Type A (female thread end), Type E (hose barb), Type F (male thread end) or Type DP (dust plug).
  • Type: C.
  • Material: Stainless Steel.
  • Sizes range from: 20mm (3/4″) – 150mm (6″).

Reviews

There are no reviews yet.

Be the first to review “Stainless Steel 316 Camlock Fitting Type C Female Coupling x Hose Barb”

Your email address will not be published. Required fields are marked *

Drawings - Measurements

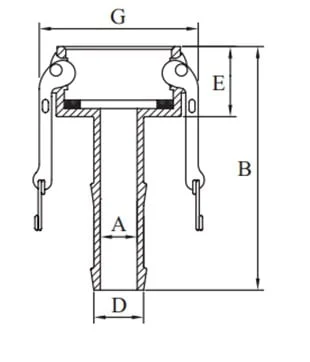

SS 316 Camlock Fitting Type C Female Coupling x Hose Barb - Drawing
SIZE A B D E G STAINLESS STEEL KG⁄PC
¾″ 14 84 20 32 53 0.19
1″ 20 98 26 40 60 0.29
1¼″ 25 103 33 48 78 0.46
1½″ 31 121 39 49 85 0.56
2″ 43 138 52 54 96 0.72
2½″ 55 149 65 59 110 1.08
3″ 67 160 77 60 127 1.56
4″ 92 170 103 62 156 2.26
6″ 140 230 150 62 240 4.22
