Sale!

Aluminium Camlock Fitting Type B Female Coupling x Male BSP Thread

Aluminium Camlock Type B: lightweight, corrosion-resistant, and non-toxic. Tool-free BSP coupling for quick, reliable liquid transfer across industries.

Price range: $4.27 through $42.64 Inc. GST

- +
SKU: ALB Category: Tag:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Aluminium Camlock – Type B – Female Coupling x Male BSP

A Quick Connect / Disconnect Fitting

The benefit of an aluminium camlock is that aluminium is light weight and corrosion resistant. It is also odourless and water-tight, which makes it non toxic.

Camlock fittings are used to connect hose fittings and/or pipe fittings together in a numerous number of industries – this enables liquids to be transferred from one place to another. No tools are required to connect camlock fittings which makes them super easy to use, time saving and cost efficient. Camlock fittings are an extremely versatile and durable product and are well suited to situations where frequent changes occur.

Reviews

There are no reviews yet.

Be the first to review “Aluminium Camlock Fitting Type B Female Coupling x Male BSP Thread”

Your email address will not be published. Required fields are marked *

Features:

  • Female Coupling x Male BSP thread of the same size.
  • Used with corresponding coupler: Type A (female thread end), Type E (hose barb), Type F (male thread end) or Type DC (dust plug).
  • Used in irrigation, pumping, hose distribution, bulk tanker, water carrier and general industries.
  • Used in water, oil, powders, some hydrocarbons and chemical applications.
  • Type: B.
  • Thread: BSP.
  • Material: Aluminium.
  • Sizes range from: 20mm (3/4″) - 150mm (6″).

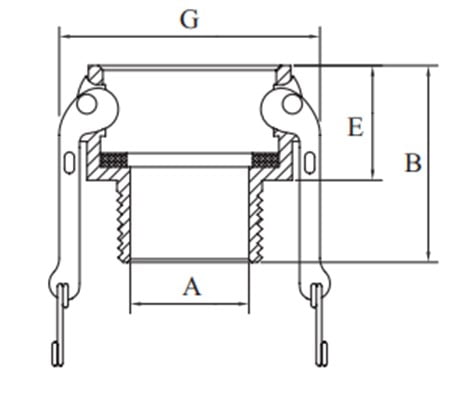

Aluminium Camlock Fitting Type B Female Coupling x Male BSP Thread - Drawing
SIZE A B E G ALUMINIUM KG/PC
¾" 14 53 32 53 0.1
1" 24 62 40 60 0.17
1¼" 28 66 48 78 0.21
1½" 35 71 49 85 0.24
2" 51 77 54 96 0.28
2½" 58 85 59 110 0.44
3" 72 92 60 127 0.56
4" 98 95 62 156 0.99
6" 150 102 62 240 1.76
