Aluminium Camlock Fitting Type E Male Adaptor x Hose Barb

Aluminium Camlock Fitting Type E Male Adaptor x Hose Barb

Aluminium Camlock Type E: male camlock x male hose barb. Lightweight, corrosion-resistant, and non-toxic—perfect for fast, tool-free liquid hose connections.

Price range: $2.61 through $45.08 Inc. GST

Size

20mm (¾″)

25mm (1″)

32mm (1¼″)

40mm (1½″)

50mm (2″)

65mm (2½″)

80mm (3″)

100mm (4″)

150mm (6″)

Clear

- +

SKU: ALE Category: Camlock Fittings Tag: Aluminium

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Description
Reviews (0)

Aluminium Camlock – Type E – Male Camlock x Male Hose Barb

A Quick Connect / Disconnect Fitting

The benefit of an aluminium camlock is that aluminium is light weight and corrosion resistant. It is also odourless and water-tight, which makes it non toxic.

Camlock fittings are used to connect hose fittings and/or pipe fittings together in a numerous number of industries – this enables liquids to be transferred from one place to another. No tools are required to connect camlock fittings which makes them super easy to use, time saving and cost efficient. Camlock fittings are an extremely versatile and durable product and are well suited to situations where frequent changes occur.

Reviews

There are no reviews yet.

Be the first to review “Aluminium Camlock Fitting Type E Male Adaptor x Hose Barb”

Features:

Male Camlock x Male Hose Barb.
Used with corresponding coupler, Type B (male thread end), Type C (hose barb), Type D (female thread end) or Type DC (dust cap).
Used in irrigation, pumping, hose distribution, bulk tanker, water carrier and general industries.
Used in water, oil, powders, some hydrocarbons and chemical applications.
Type: E.
Material: Aluminium.
Sizes range from: 20mm (3/4″) - 150mm (6″).

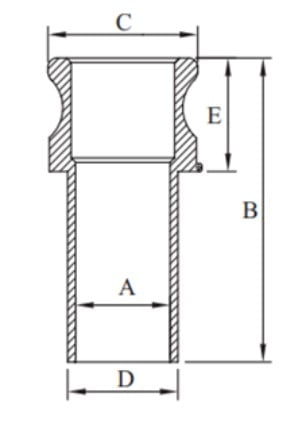

Aluminium Camlock Fitting Type E Male Adaptor x Hose Barb - Drawing

SIZE	A	B	D	E	C	ALUMINIUM KG/PC
¾"	19	88	20	40	34	0.06
1"	24	102	26	46	38	0.09
1¼"	28	108	33	53	48	0.14
1½"	35	159	39	56	56	0.20
2"	48	136	52	61	66	0.25
2½"	58	159	65	65	80	0.43
3"	72	166	77	66	102	0.50
4"	98	177	103	70	130	0.82
6"	140	250	150	75	175	2.26
