This product is also known as right angle meter stop tap.
Features:
- Watermark approved
- DR Brass
- Full Bore 100% pressure tested
- Lockable ON and OFF
- WSAA Appraised
- Tested and certified to AS 4796
Brass Water Service Ball Valve Right Angle Flare Compression x Female BSP Thread General Purpose
Right angle meter stop tap. DR Brass, Watermark & WSAA approved, lockable, full bore, tested to AS 4796. Max 2500kPa, 1°C to 90°C.
Price range: $51.63 through $84.66 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.
- Working temperature 1°C to 90°C
- Max. pressure rating 2500kPa
Material Chart:
| Part | Material |
| Body | DR Brass |
| Cap | DR Brass |
| Seal | PTFE |
| Ball | Stainless Steel |
| Handle | DR Brass |
| O Ring | FKM |
| Retaining Ring | PA |
| Nut | DR Brass |

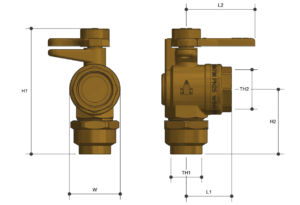

Sizing Chart (MM):
WATER SERVICE BALL VALVES
Right Angle FL X FI Lockable
| Size | L1 | L2 | H1 | H2 | W | TH1 | TH2 |
| WRA20 | 33 | 50 | 91 | 47 | 37 | DN20 | Rp 3/4” |
| WRA25 | 40 | 56 | 103 | 56 | 46 | DN25 | Rp 1” |
