Brass T-handle Ball Valve Male x Female BSP Thread Full Bore General Purpose

Experience unmatched control and reliability with our Brass Ball Valve – M&F – T Handle – Full Bore. Its robust brass construction and full bore design deliver optimal flow, making it indispensable for any fluid management system. Essential for efficiency and safety.

Price range: $8.91 through $20.46 Inc. GST

- +
SKU: BVTM Category: Tag:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Brass Ball Valve – M&F – T Handle – Full Bore: Essential for Efficient Fluid Control

The Brass Ball Valve – M&F – T Handle – Full Bore epitomizes the fusion of durability, efficiency, and versatility, making it a quintessential element for fluid management in a myriad of applications. Its superior construction and full-bore design ensure peak performance, from domestic water services to demanding industrial processes.

Robust and Reliable Design

Crafted from nickel-coated brass, this valve offers exceptional corrosion resistance and longevity. The T-handle operation provides ease of use, facilitating rapid opening and closing, especially in constrained spaces. The full bore design ensures maximal flow capacity and minimal pressure loss, optimizing fluid management.

Adaptable and High-Performing

With Male & Female (M&F) BSP threading, the valve integrates seamlessly into various piping systems, offering flexible installation options. Its precision-engineered ball mechanism and sealing features deliver leak-proof performance, critical in maintaining system integrity and efficiency.

High Operational Standards

Designed to withstand high-pressure and temperature environments, this valve is robust enough for a range of applications, from rural and commercial water systems to HVAC. Its efficiency is paramount in agricultural and industrial settings, where precise fluid control is essential.

Easy Installation and Maintenance

The valve’s straightforward design ensures easy installation and minimal maintenance, further enhancing its operational efficiency and making it a favoured choice among professionals and homeowners for its reliability and ease of use.

In summary, the Brass Ball Valve – M&F – T Handle – Full Bore is not just a valve; it’s a comprehensive solution for today’s fluid control challenges. Offering unmatched reliability, durability, and ease of operation, it stands as a critical tool in both domestic and industrial fluid management systems.

Reviews

There are no reviews yet.

Be the first to review “Brass T-handle Ball Valve Male x Female BSP Thread Full Bore General Purpose”

Your email address will not be published. Required fields are marked *

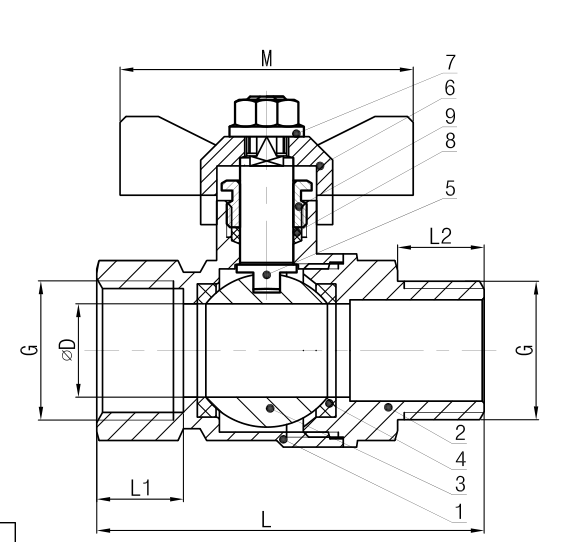

Brass T-handle Ball Valve Male x Female BSP Thread Full Bore - Drawing
SIZE L D M L1/L2 G
½" 56 14 50 12/12.5 21
¾" 62 18 50 12.5/13 27
1" 73 23 62 14/15 34

Make Up

KEY PART MATERIAL
1 Body Brass
2 Valve Bonnet Brass
3 Valve Ball Brass
4 Valve Seat PTFE
5 Valve Stem Brass
6 Handle Aluminium
7 Hexagon Nut Stainless Steel
8 Padding PTFE
9 Packing Nut Brass

Technical Features

  • Pressure limit: 16 BAR
  • Temperature range: 0°C to 80°C
  • Male and Female BSP threaded ends
  • "T" Handle
  • Full bore
