Brass Spring Check Valve (Tested & Watermarked) – Non Return Valve
The Brass Spring Check Non-Return Valve, certified with a Watermark and tested to AS 1628, is essential in maintaining a reliable and efficient water system. This valve is adept at preventing backflow, ensuring that water moves in the intended direction, thus safeguarding the system’s integrity.
Design and Functionality
Featuring female BSP threads, this valve is designed for vertical and horizontal installations, making it a versatile addition to any plumbing setup. Its spring-loaded disc mechanism effectively blocks reverse flow, maintaining consistent water pressure and flow in the system.
Applications
Perfect for numerous applications, this valve suits potable water systems and solar water heating setups. Its robust design ensures it can handle the rigours of daily use, providing a dependable solution for controlling water flow and preventing backflow.
Technical Specifications

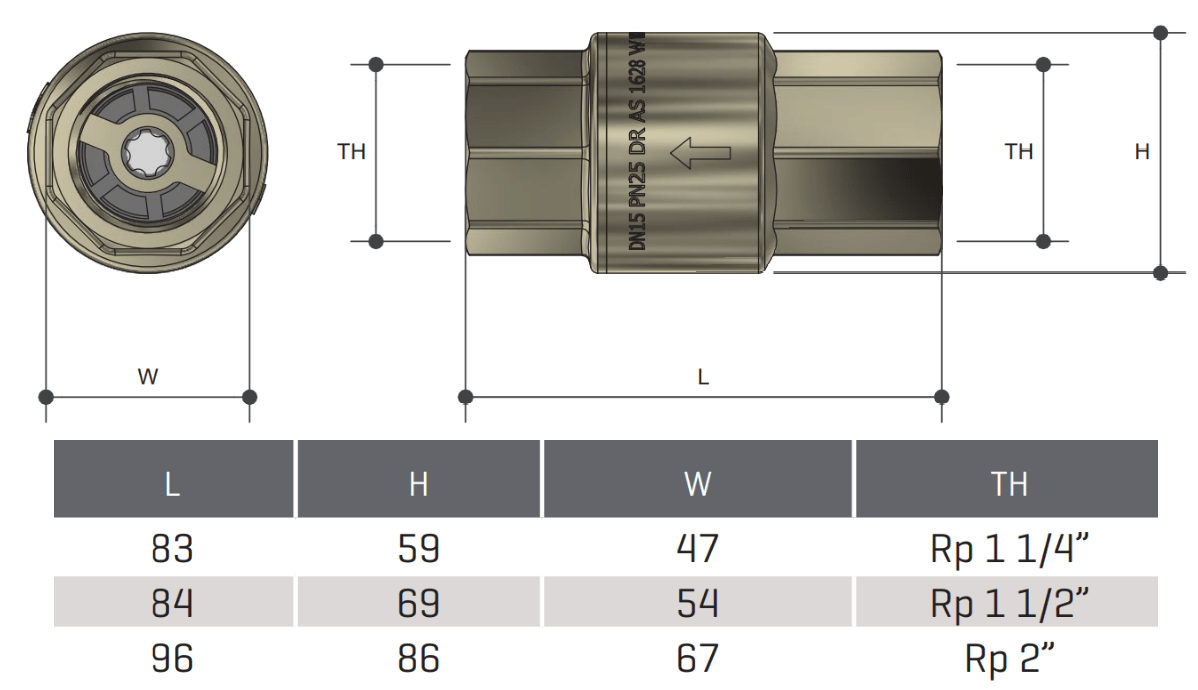

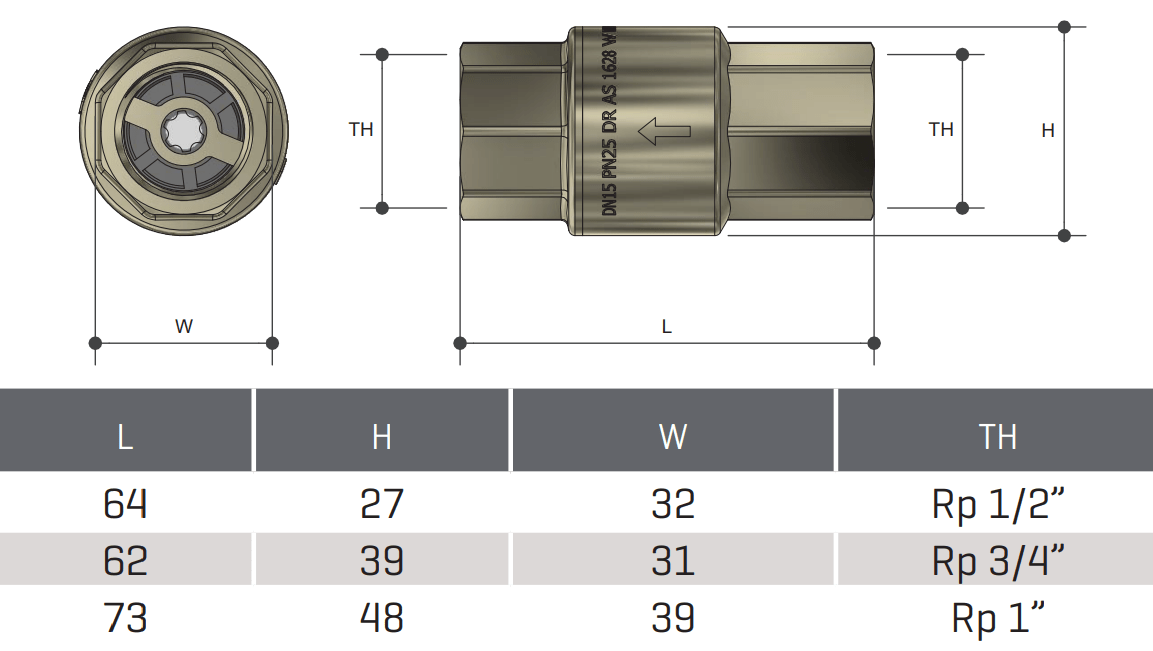

Available in sizes from 15mm (1/2″) to 50mm (2″), the valve operates efficiently within a temperature range of 1 ̊C to 130 ̊C. It can withstand a maximum pressure of 2000kPa, with a maximum back pressure of 1500kPa, making it ideal for high-pressure applications.
Quality Assurance
With its Watermark approval, the Brass Spring Check Valve meets the stringent Australian standards for plumbing and water supply products. This certification underscores the valve’s quality, durability, and reliability in various water system applications.

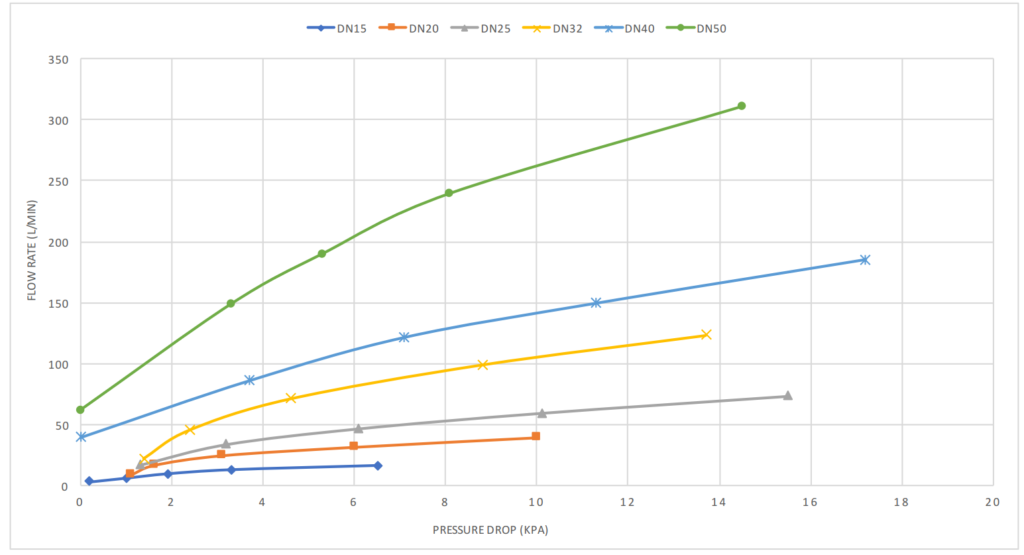

The Brass Spring Check Valve (Tested & Watermarked) – Non-Return Valve is not just a component; it’s a critical safeguard for your water systems, ensuring smooth operation and protection against reverse flow. Its high-flow design and minimal head loss, stand out as a must-have for efficient water management.
