Brass Lockable Lever Operated Ball Valve Female x Female BSP Thread Full Bore Tested Dual Approved

DR brass ball valve, WMTS012 certified, 15–50mm (½″–2″), for potable water, gas & chemicals. Watermarked & AGA approved. 2500kPa, 1–95 °C, lockable, full

Price range: $16.02 through $143.99 Inc. GST

- +
SKU: BVLL Category: Tag:

Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

Dual Approved Lockable Brass Ball Valve With Lever – Watermarked & AGA Approved

Dezincification is a serious threat to our water industry. It is necessary that dezincification resistant (DR) valves are used in appropriate applications which include all potable water services including water tanks. Apart from potable water, it is also approved for the use on low pressure gas services, oils, chemicals and hydrocarbons.

  • Watermarked and AGA approved.
  • Full bore.
  • 100% pressure tested.
  • Lockable on and off.
  • Available in sizes 15mm (1/2″) to 50mm (2″).
  • Blow proof spindle.
  • Tested and certified to WMTS012.
  • Working temperature: 1°C to 95°C.
  • Maximum pressure rating: Water – 2500kPa & Gas – 2100kPa.

Reviews

There are no reviews yet.

Be the first to review “Brass Lockable Lever Operated Ball Valve Female x Female BSP Thread Full Bore Tested Dual Approved”

Your email address will not be published. Required fields are marked *

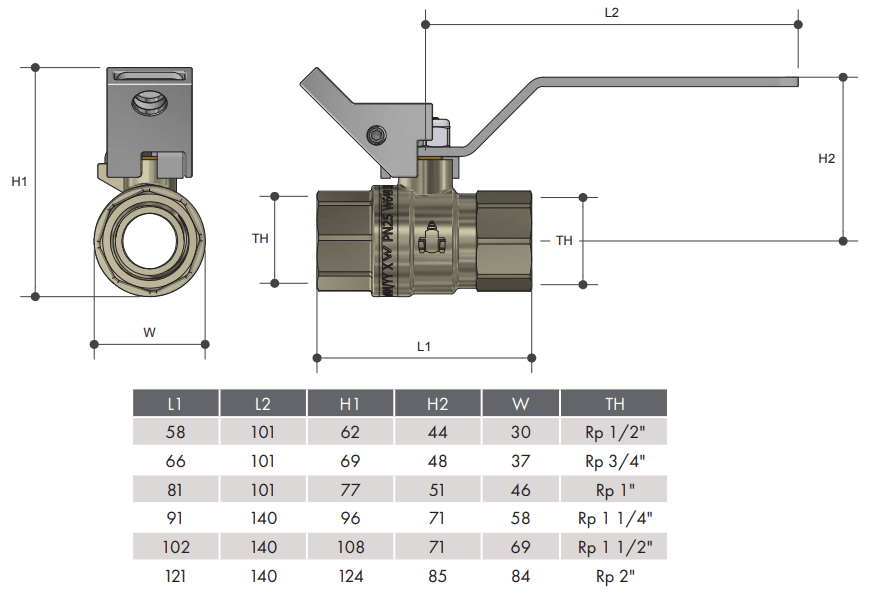

Drawings - Measurements

Brass Lockable Lever Ball Valve Female BSP Full Bore Tested - Drawing

Material Chart

Part Material
Body DR Brass
Seal PTFE
Ball (15–40MM) DR Brass
Ball (50MM) Stainless Steel
Bonnet DR Brass
Spindle (15–40MM) DR Brass
Spindle (50MM) Stainless Steel
O Ring FKM
Handle Stainless Steel
Lock Nut Stainless Steel
Clip Aluminium
