- Manufactured using forging method.
- Rapid connect and disconnect of fittings.
- Push, twist and lock action for rapid connect and disconnect of fittings.
- Aluminium alloy material for long durability.
- Easy installation.
- Made in Germany
Aluminium Storz Fitting x Hose Barb Adaptor
Forged aluminium alloy fitting. Push, twist & lock for fast connect/disconnect. Durable, easy to install & German made for lasting reliability.
Price range: $40.13 through $411.64 Inc. GST
Spend $200, get 10% off | Spend $300, get 15% off | Spend $400, get 20% off
Note: Items on sale are exempt from additional discounts.

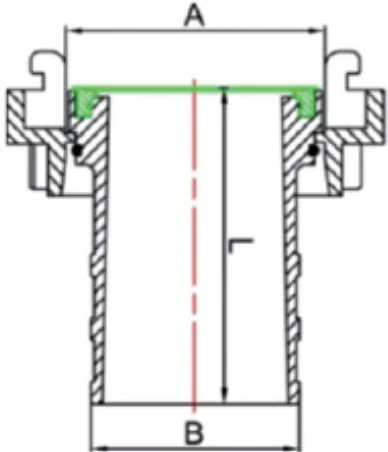

Drawings - Measurements
Storz Adaptor x Hose Tail
| DESCRIPTION | LUG DISTANCE / A (mm) | B (mm) | L (mm) | Weight (kg) |
|---|---|---|---|---|
| 25mm Storz x 20mm Hose Tail | 31 | 20 | 55 | 0.10 |
| 25mm Storz x 25mm Hose Tail | 31 | 25 | 53 | 0.09 |
| 40mm Storz x 25mm Hose Tail | 51 | 25 | 90 | 0.22 |
| 40mm Storz x 40mm Hose Tail | 51 | 38 | 90 | 0.22 |
| 50mm Storz x 40mm Hose Tail | 66 | 38 | 90 | 0.38 |
| 50mm Storz x 50mm Hose Tail | 66 | 38 | 90 | 0.38 |
| 65mm Storz x 40mm Hose Tail | 81 | 38 | 90 | 0.46 |
| 65mm Storz x 50mm Hose Tail | 81 | 50 | 90 | 0.50 |
| 65mm Storz x 65mm Hose Tail | 81 | 65 | 95 | 0.51 |
| 80mm Storz x 50mm Hose Tail | 89 | 50 | 125 | 0.66 |
| 80mm Storz x 65mm Hose Tail | 89 | 65 | 125 | 0.68 |
| 80mm Storz x 80mm Hose Tail | 89 | 75 | 125 | 0.71 |
| 100mm Storz x 100mm Hose Tail | 115 | 100 | 150 | 1.15 |
| 125mm Storz x 125mm Hose Tail | 148 | 125 | 200 | 2.27 |
| 150mm Storz x 150mm Hose Tail | 160 | 150 | 180 | 2.90 |
